TANK VALVES AND VENTS PART NO. 752-B, 752-V, 752-VH, 760,
760 DOT-B, & 760 DOT-V |
|
|
|
General Description
of Valves
|
This unique family of valves is intended to be used as safety
devices in Intermediate Bulk Containers. The valve body features
2 inch external threads and is designed to be torqued into a
spin weld fitting or a tank lid for a leak-tight installation.
(Recomended spin weld fitting, Part Number 58HD) |
Technical Specifications
|
Materials of Construction:
Valve Bodies & Plungers - High Density Polyethylene
(HDPE).
O-rings - Nitrile [Buna] or Fluorocarbon [Viton]
Other O-ring materials can be used given sufficient lead time.
Springs - Zinc-plated Spring Steel and Stainless Steel.
Hastelloy C can be used given sufficient lead time.
|
Functional Operation
|
|
|

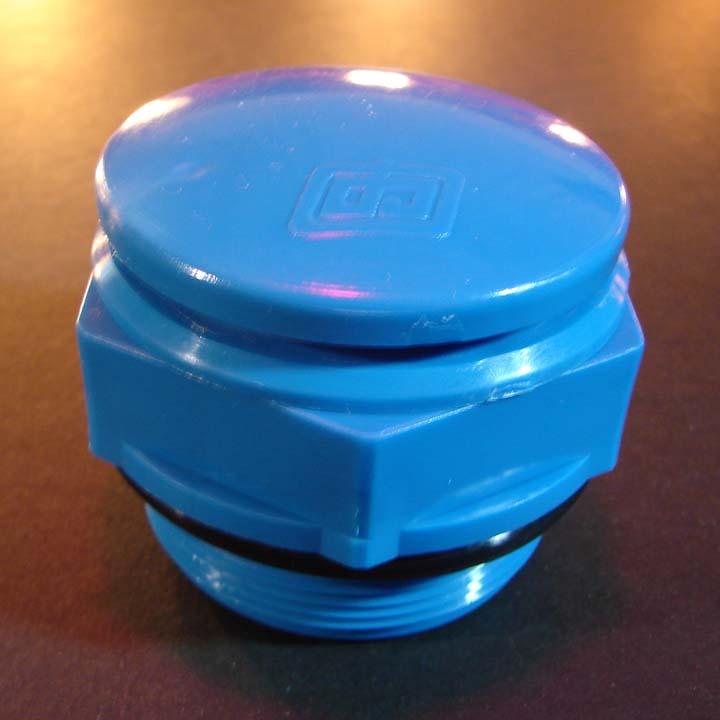

752 - Vacuum Breaker only, allows outside air to enter
tank. Applications include chemical spraying or rapid pump out
of tank. Protects tank from buckling. Tractor Test Certified.
Venting with no spillage. |
|
o Vacuum pressure to open __ 0.5
psi differential |
|
|
|
|

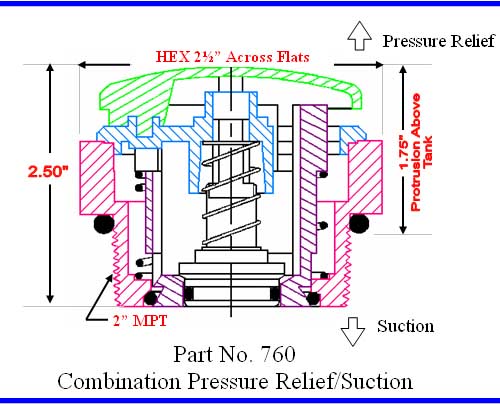

760 - Combination Pressure Relief & Vacuum Breaker.
Provides both pressure relief and vacuum breaking with in a single
housing. "Acts as a 2-way breather." Similar in design
to the #760 DOT, but releases at lower pressure and has less
stringent leak requirements. |
o Vacuum pressure to open ___0.5
psi differential
o Pressure relief____________1.5
psi |
|
|
|
|

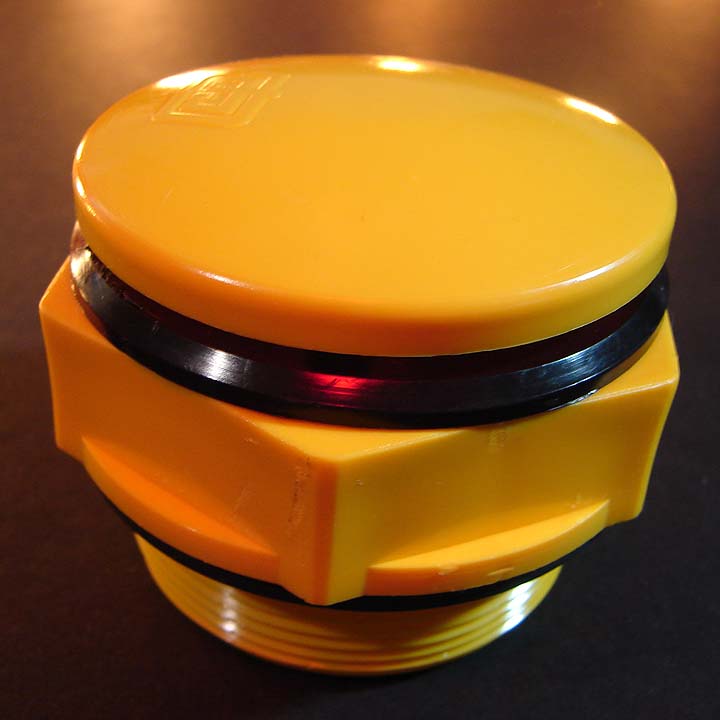

760 DOT - Combination Pressure Relief & Vacuum Breaker.
Currently used for DOT certified IBC's. |
o Vacuum pressure to open __ 0.5
psi differential
o No detectable leak ________3.0
psi
o Pressure relief____________4.0
psi |
|
Additional Features
- A seal is formed at the internal tank surface, minimizing
the contact of product vapor with the spring surfaces.
- Pre-set factory pressure and suction relief levels. Once
set, the unit is permanently joined by ultrasonic welding, preventing
alteration of the specified pressure venting levels.
- Machined sealing surfaces.
- Dome-shaped cover to prevent ice and snow build-up from interfering
with valve function.
- Valve material contains a full complement of Environmental
Stress Additives (ESA) including Ultraviolet (UV) to prevent
weathering.
|
|
Part No. |
Description |
O'Ring Seals |
Price / Per Pcs |
|
#752-B |
Vacuum Breaker |
Nitrile [Buna-N] |
$9 |
|
#752-V |
Vacuum Breaker |
Fluorocarbon [Viton] |
$11 |
|
#752-VH |
Vacuum Breaker |
Hastelloy C Spring |
$15 |
|
#760 |
Combination Valve |
Nitrile [Buna-N] |
$16 |
|
#760 DOT-B |
Combination Valve |
Nitrile [Buna-N] |
$18 |
|
#760 DOT-V |
Combination Valve |
Fluorocarbon [Viton] |
$21 |
